DBSCAN & HDBSCAN, In Full Depth

K-Means assumes round, similarly-sized blobs and forces every point into a cluster. DBSCAN drops both assumptions: it finds clusters of any shape, defined purely by density, and explicitly labels sparse points as noise rather than forcing them into a nearby group.

DBSCAN (Density-Based Spatial Clustering of Applications with Noise)

Two parameters define everything: $\epsilon$ (a distance radius) and min_samples (a density threshold). Every point falls into one of three roles:

Core point: has at least min_samples other points within distance $\epsilon$ of it.
Border point: within $\epsilon$ of a core point, but doesn't itself have enough neighbors to qualify as core.
Noise point: neither — too isolated to belong to any cluster.

The algorithm: pick an unvisited point; if it's a core point, start a new cluster and recursively absorb every point density-reachable from it (every neighbor within $\epsilon$ , and their neighbors, and so on, as long as each new point is itself a core point or directly borders one). If the starting point isn't core, mark it as noise (for now — it may still get absorbed later as a border point of some other cluster). Repeat until every point has been visited.

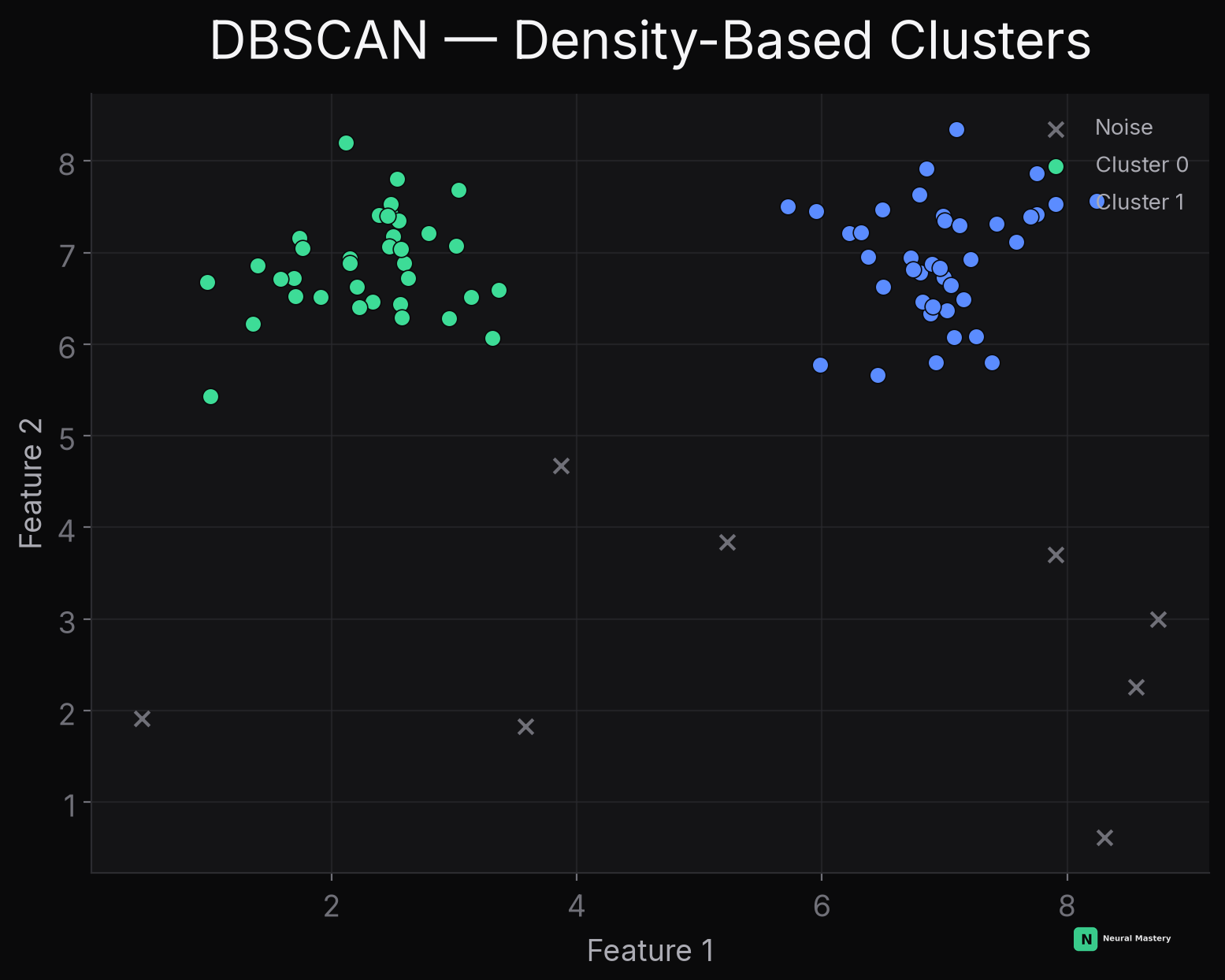

DBSCAN finds clusters of arbitrary shape and explicitly marks sparse points as noise (×)

Why this handles non-convex shapes natively: nothing in the algorithm ever computes a centroid or assumes a shape — clusters grow purely by chaining together dense neighborhoods, so an elongated, curved, or ring-shaped cluster is found exactly as easily as a round one. This is precisely why DBSCAN succeeds on the two-moons data where K-Means fails.

Choosing $\epsilon$ and min_samples: min_samples is often set based on data dimensionality (a common heuristic: $\geq d+1$ , where $d$ is the number of features). $\epsilon$ is typically chosen via a k-distance plot — sort each point's distance to its $k$ -th nearest neighbor, plot it, and look for the "knee" where distances start increasing sharply — the same elbow-finding intuition as K-Means' elbow method, applied to density instead of inertia.

Real DBSCAN, run live — drag ε and min_samples and watch cluster count, noise count, and every point's role recompute for real:

ε (radius)0.7

min_samples4

Push ε up to merge the two dense blobs into one cluster; push min_samples up to watch the sparser edges of each blob get demoted from core to border to noise.

Real DBSCAN, run live on 80 real points: at ε=0.70, min_samples=4 → 2 real cluster(s) found, 7 points labeled noise. Core points (filled) have ≥4 real neighbors within ε; border points (ring) don't qualify themselves but sit within ε of a core point; noise (×) qualifies for neither.

Weakness: a single global $\epsilon$ assumes roughly uniform density everywhere. If one region of the data is naturally denser than another, one $\epsilon$ can't serve both well — too small and it fragments the dense region; too large and it merges the sparse region into noise or into the wrong cluster.

HDBSCAN (Hierarchical DBSCAN)

Fixes DBSCAN's single- $\epsilon$ limitation directly: instead of one fixed radius, HDBSCAN builds a hierarchy across a range of $\epsilon$ values (conceptually similar to the dendrogram from hierarchical clustering, but built from density rather than raw distance), then extracts the most stable clusters across that range — clusters that persist over a wide span of $\epsilon$ values are considered genuine; clusters that only appear briefly at one specific $\epsilon$ are treated as noise or merged.

Practical result: HDBSCAN needs only min_samples (or min_cluster_size) as a real hyperparameter — no $\epsilon$ to tune at all — and handles varying-density data that plain DBSCAN cannot, at the cost of somewhat higher computational complexity and a less intuitive parameter to reason about than a simple distance radius.

When to Use Density-Based Clustering

Cluster shapes are irregular, elongated, or nested (rings within rings) — where K-Means's spherical assumption breaks down.
The dataset genuinely contains noise/outliers that shouldn't be forced into any cluster — geospatial data, sensor readings, anomaly-adjacent data.
You don't know the number of clusters upfront, and don't want to guess $k$ — DBSCAN/HDBSCAN discover the cluster count automatically from the data's density structure.
Not ideal when: clusters genuinely do vary smoothly in density with no clear gaps (DBSCAN needs some density contrast to find boundaries at all), or the dataset is very high-dimensional (density becomes a less meaningful concept — the same curse of dimensionality that hurts KNN affects any distance/density-based method).

Next: Gaussian Mixture Models & Spectral Clustering — a probabilistic take on clustering, and a graph-based approach that handles non-convex shapes through an entirely different mechanism than density.
